Projects / Irving, TX
Commercial Slide Gate Operator Replacement at an Irving Apartment Community
A failed slide gate operator at a multifamily community replaced with a new All-O-Matic commercial unit, remounted on a steel base with fire department access retained.
- Location Irving, TX
- Property Apartment community
- Scope Operator replacement
- Operator All-O-Matic
- Range $3,500 - $4,500

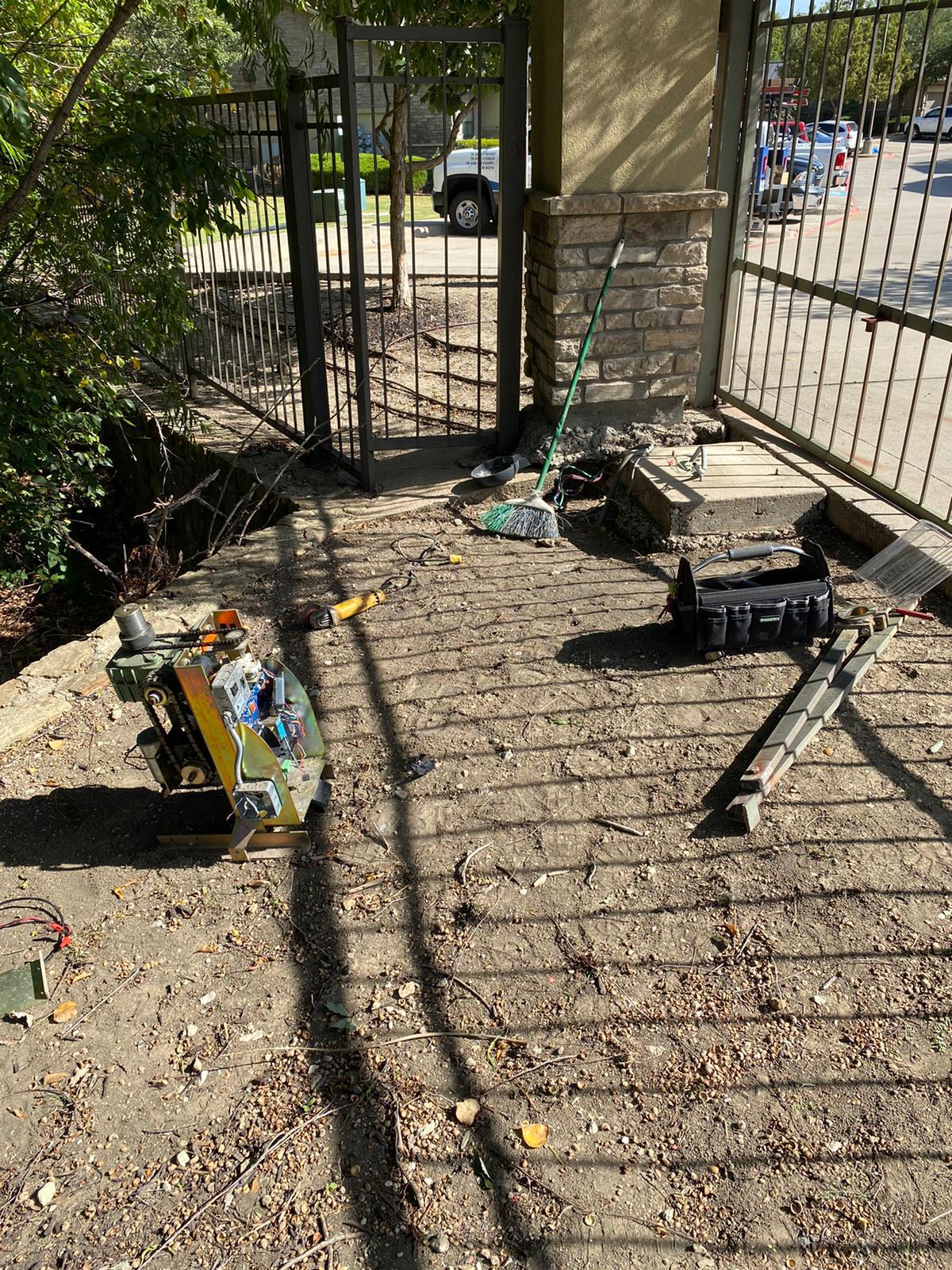

A community entrance that had stopped working
On a multifamily property the entry gate is not a convenience, it is the perimeter. When the operator fails, residents queue at the drive, deliveries stall, and the gate usually ends up propped open, which removes the security the community pays for. This unit had reached the end of its service life: heavily weathered, worn through its drive components, and past the point where another part would have brought it back.
We diagnose before we quote on every call, because plenty of dead gates need a capacitor rather than a motor. How we make that judgement is on our electric gate repair page, and the thresholds are set out in our guide to repair versus replacement.
A commercial unit rated for community traffic

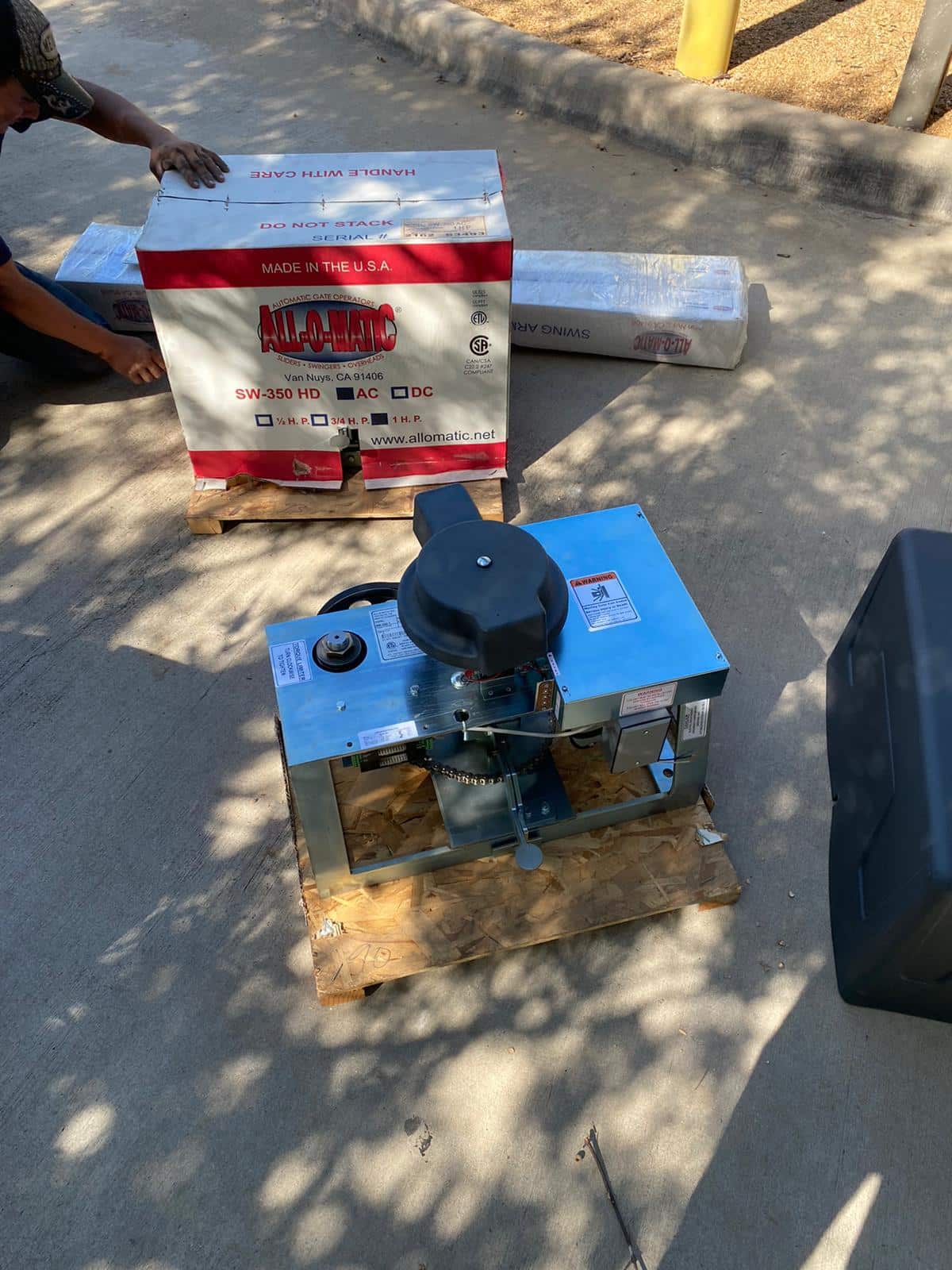

The replacement is an All-O-Matic commercial slide operator, chosen for cycle count rather than gate size alone. An apartment entrance runs hundreds of openings a day once residents, guests and delivery drivers are counted, and a residential-rated motor put on that duty overheats and burns out within months. That mismatch is the single most common cause of the commercial failures we are called to.
Sizing the unit to the panel weight and the daily cycles is the whole job. The specification we work to on high-cycle properties is on our automatic gate systems page.
Rebuilt from the base up

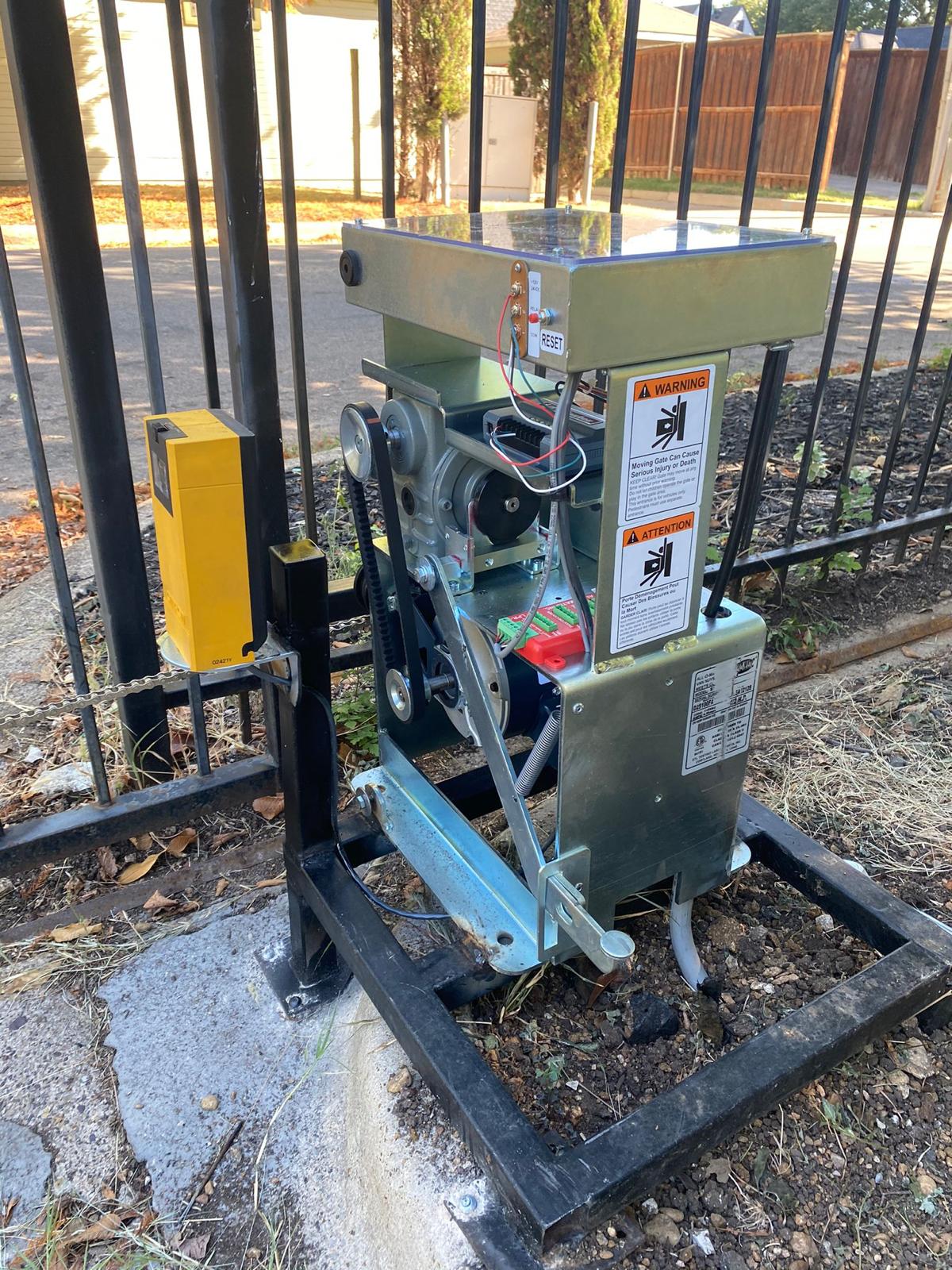

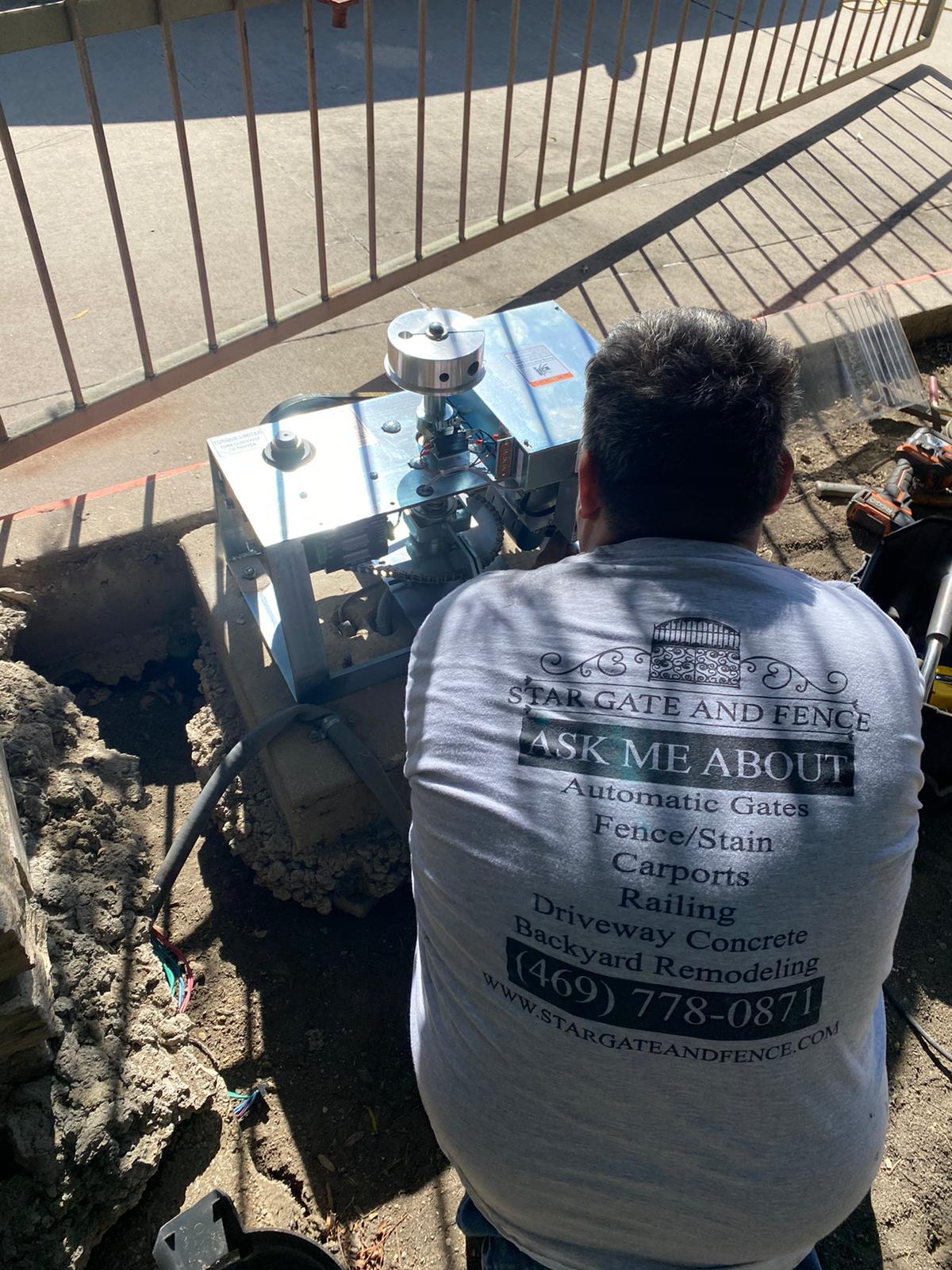

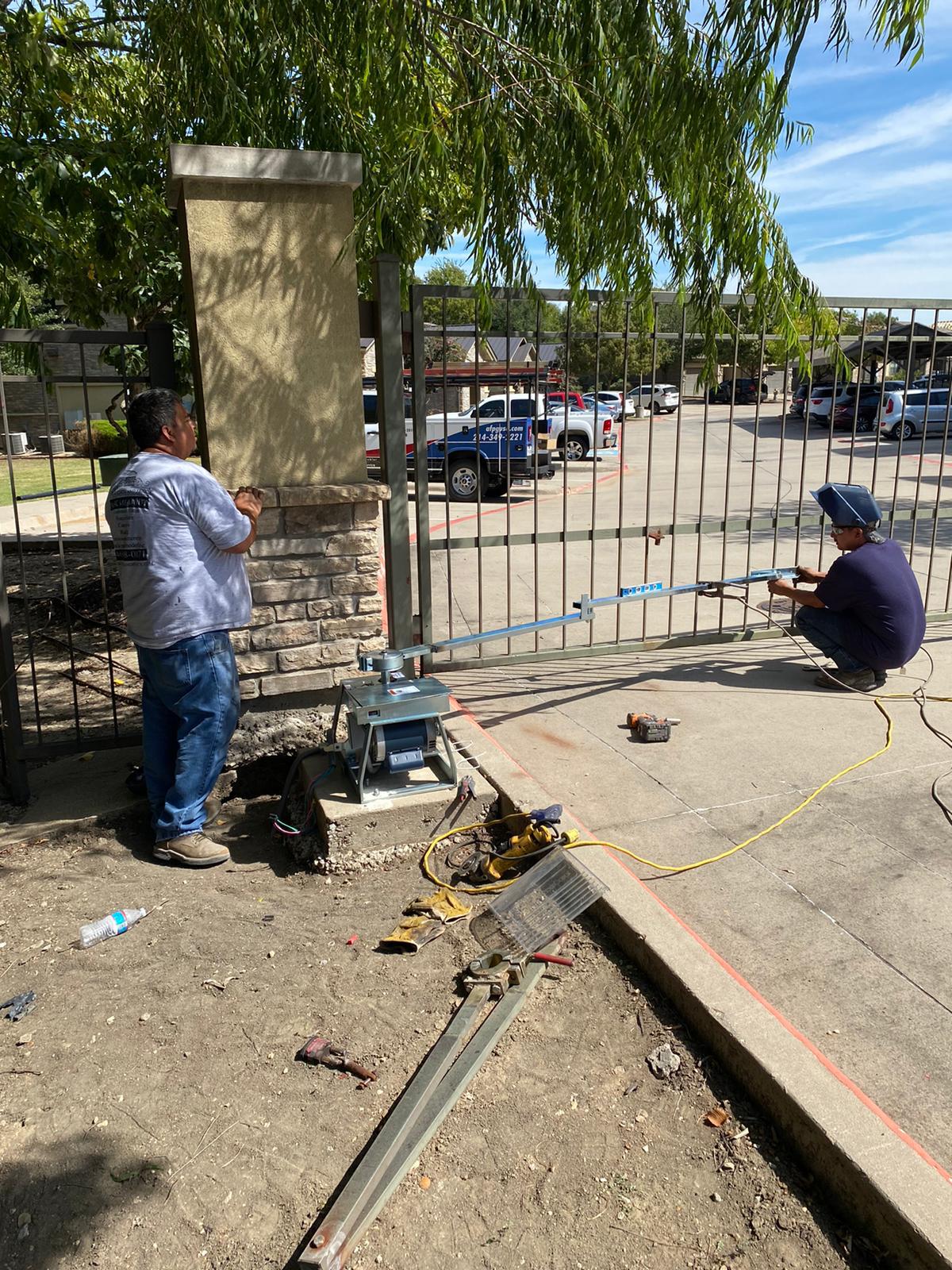

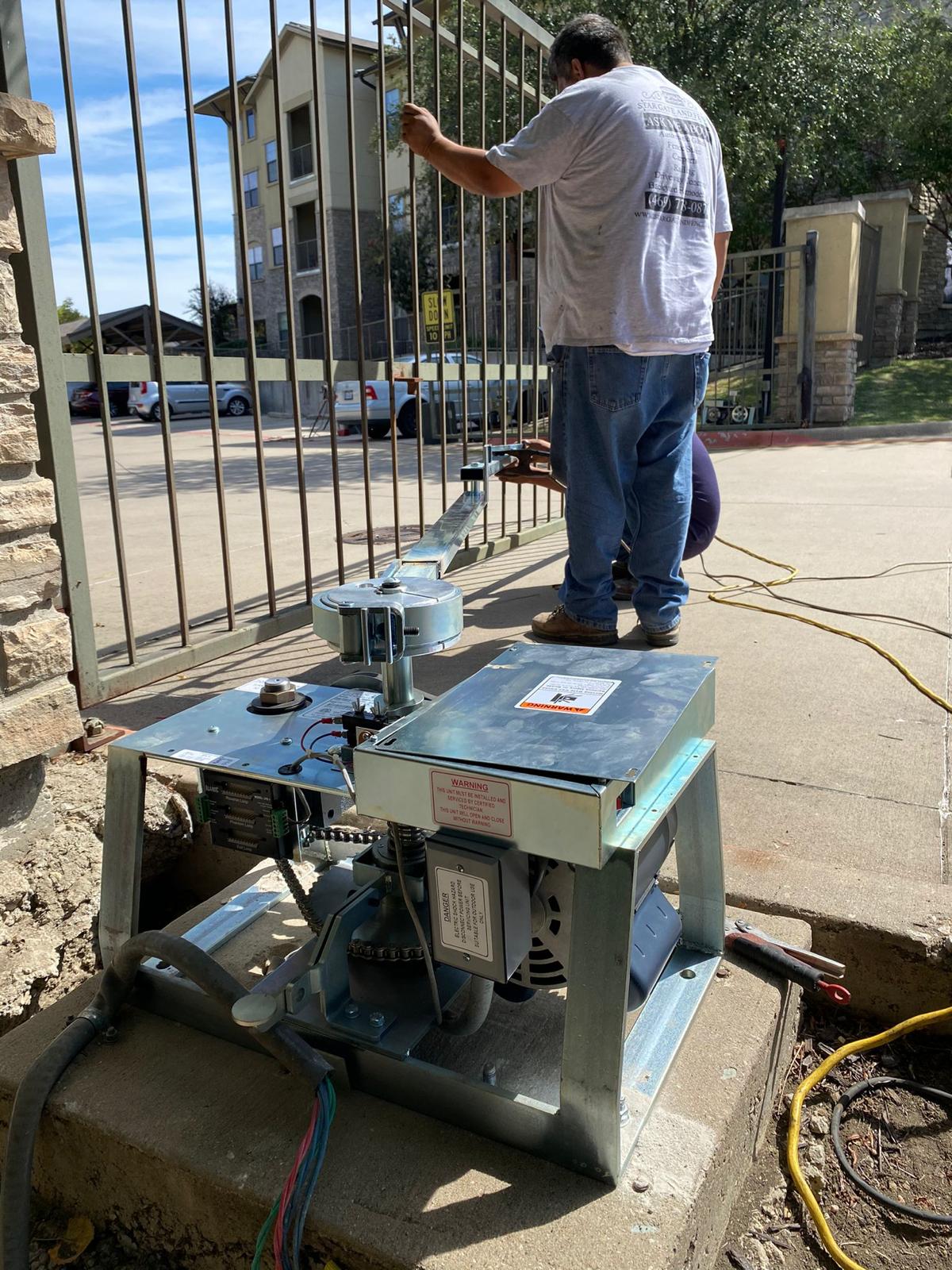

The old unit came out and the new operator went onto a steel base fixed to the pad, squared to the gate so the drive tracks true. Mounting is where a replacement is won or lost: a fraction out of alignment and the chain or gear fights the panel on every cycle, which is exactly the wear that killed the last motor.
Conduit and wiring were run back into the new controller and the pad checked as part of the work. North Texas clay moves a pad over the years, and a base that has shifted takes the operator with it. That groundwork is covered under concrete and hardscaping.
Fire department access and resident entry kept intact

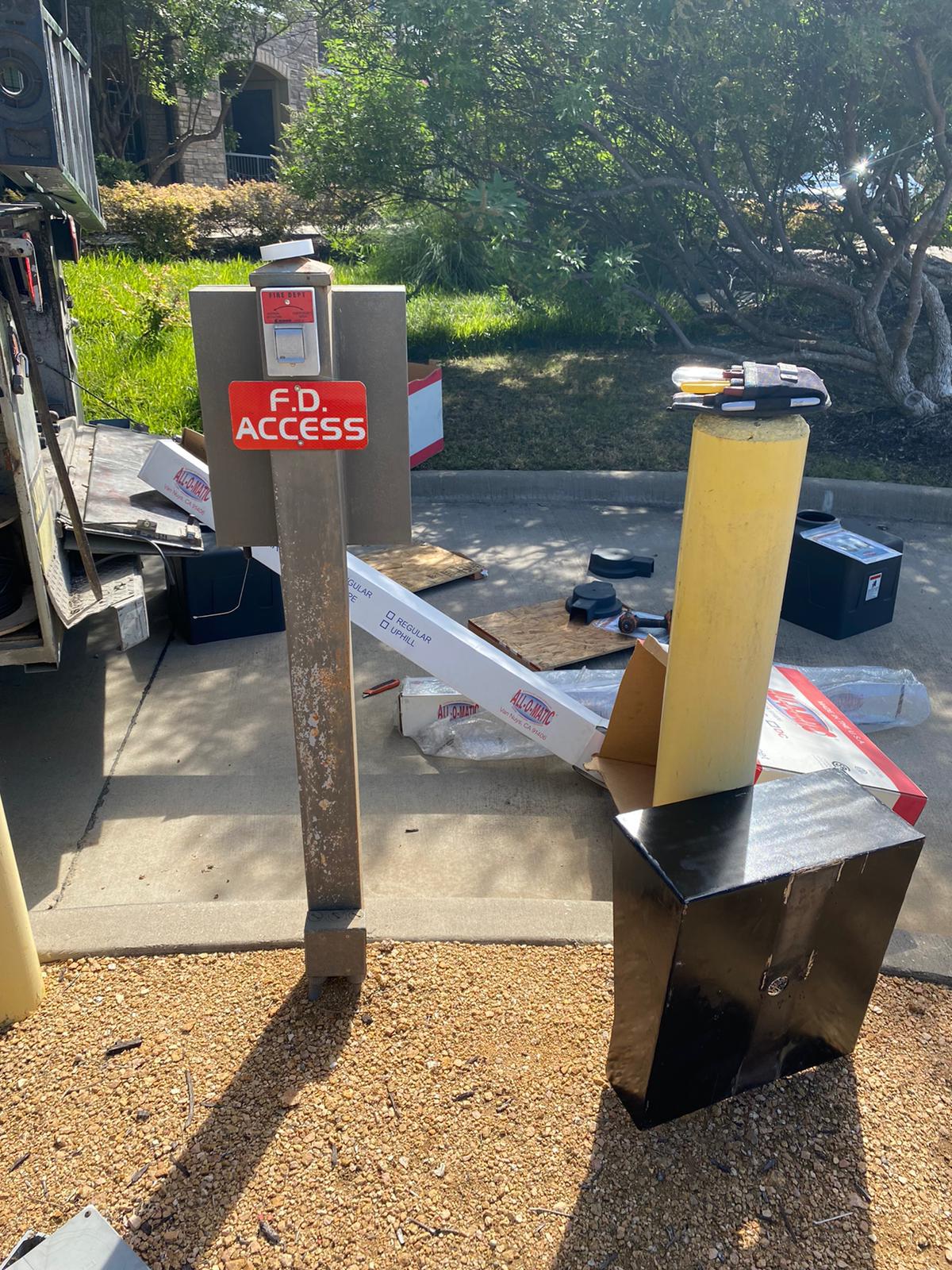

A gated community has to open for emergency services, and the fire department access at this entrance was retained and tested as part of the changeover. Bollards flank the drive to protect the hardware from vehicles, which on a busy entrance earns its cost quickly.
Resident entry credentials were confirmed working against the new controller before we left. Where a property wants to move off shared codes entirely, the options are compared on our access control page and in our access control guide.
Cycled, sensed and signed off
Before the crew left, the gate ran full cycles under load, the travel limits were set, and the photoelectric sensors were triggered deliberately to confirm the gate reverses on an obstruction. Those checks are required under UL 325, and on a property where children and vehicles share the drive they are the part of the job that matters most.
Every stage here was carried out by direct Star Gate & Fence employees. If the gate goes down outside hours, the same team answers the call through our emergency gate repair line.
Operator fittedAll-O-Matic
- Type Sliding
- Duty Commercial / high cycle
- Property Multifamily
- Installed $3,500 - $4,500
A commercial-rated slide operator sized to the panel weight and the daily cycle count of an apartment entrance, remounted on a steel base and wired by our own crew.
All All-O-Matic operators we install →Irving project photos
The failed unit, the replacement going in, the steel base and wiring, and the finished entrance.
